Ms. Bac Flo 3 Valve Gauge Backflow Test Kit with Fittings and Bushings
Ms. Bac Flo 3 Valve Gauge Backflow Test Kit with Fittings and Bushings
Ms. Bac Flo 3 Valve Backflow Test Kit
The Ms. Bac Flo 3 Valve Backflow Test Kit is a professional-grade differential pressure test kit designed for accurate testing of Reduced Pressure Principle (RP), Pressure Vacuum Breaker (PVB), and Double Check Valve Assembly (DCVA) backflow prevention devices. The 845-3 gauge is recognized on the list of acceptable gauges by both FCCC & HR-USC and CA-NV AWWA, providing confidence and reliability for certified backflow testing professionals.
Developed with over 30 years of feedback from backflow technicians, this rugged and portable kit is engineered specifically for field testing. It features soft-seated brass needle valves with replaceable seats, color-coded hoses with inline filters, and a durable molded carrying case with dedicated storage compartments for fittings and tools. Integrated 90-micron filters help protect the gauge from debris such as scale and sand, while cleanable and replaceable filter elements extend service life and maintain accuracy.
The removable gauge assembly allows for convenient use in the field, and laminated test procedures are included for quick reference during testing. Backed by a 5-Year Limited Warranty, this kit delivers dependable performance for professional backflow testing applications.
Features
- FCCC & HR-USC and CA-NV AWWA approved gauge
- Three-valve differential pressure test kit
- Designed for testing RP, PVB, and DCVA backflow assemblies

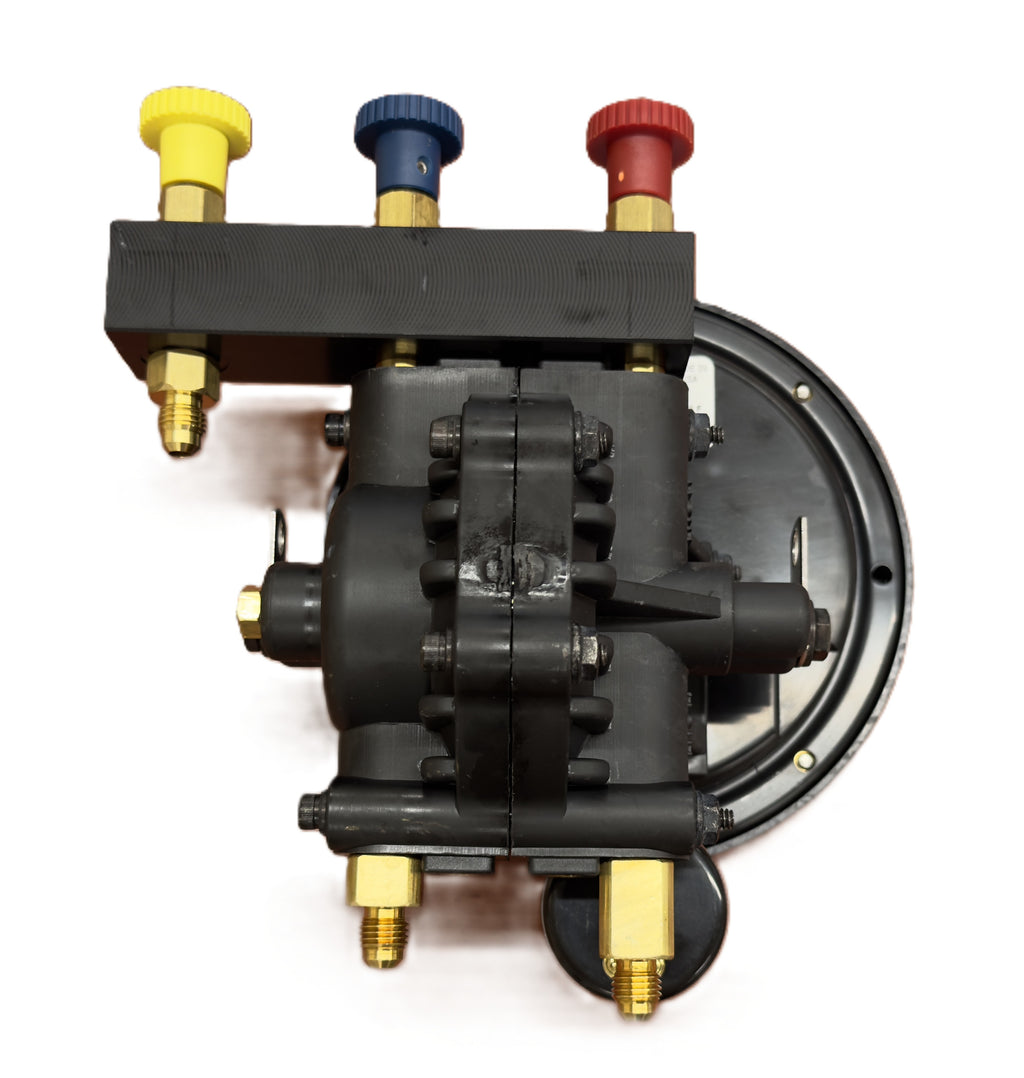

- Soft-seated brass needle valves with replaceable seats
- 90-micron filtration system helps reduce contamination and plugging
- Cleanable and replaceable filter elements
- Portable gauge assembly removable from case

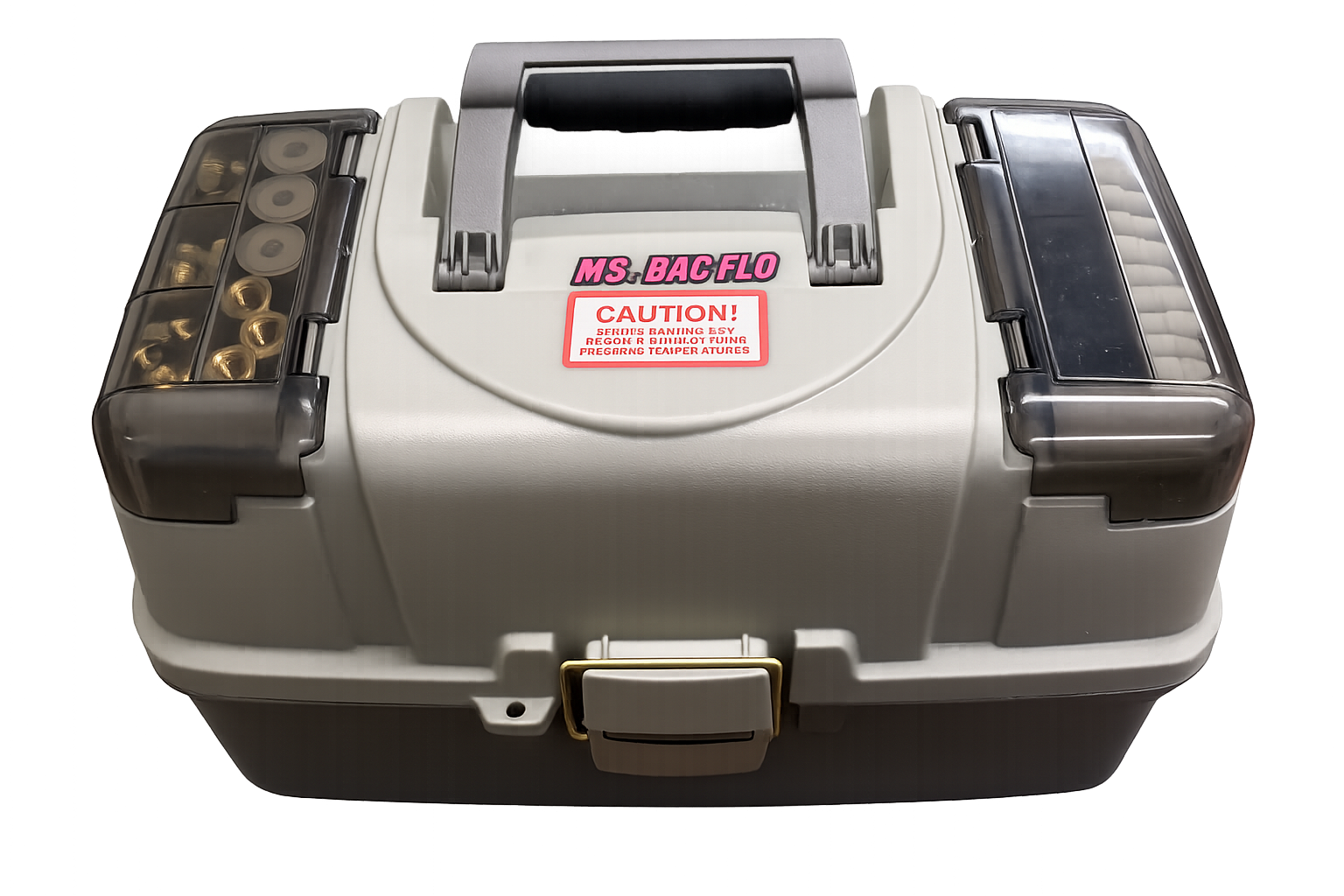

- Durable molded plastic carrying case
- Built-in storage compartments for fittings and tools
- Laminated testing procedures included
- 5-Year Limited Warranty
Specifications
- Differential Pressure Range: 0–15 PSID (0–100 kPa)

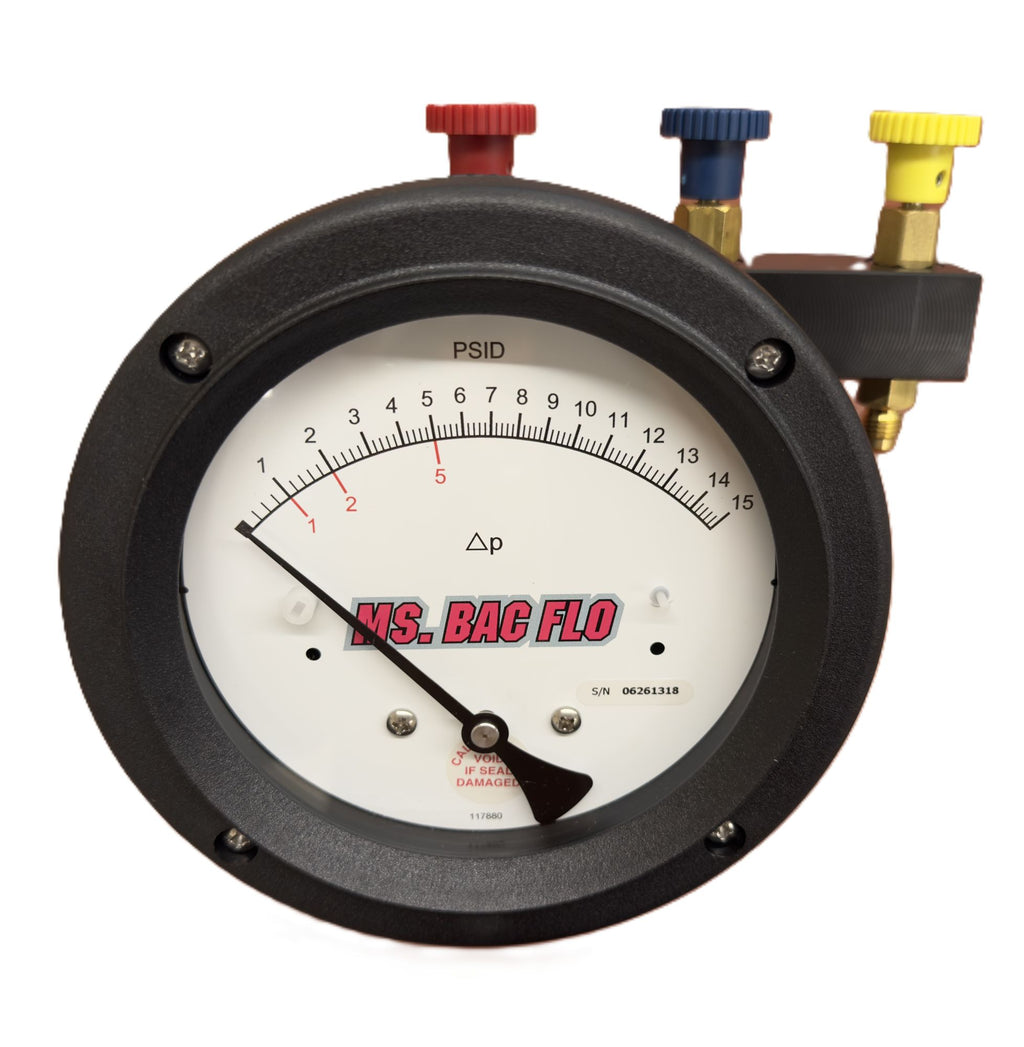

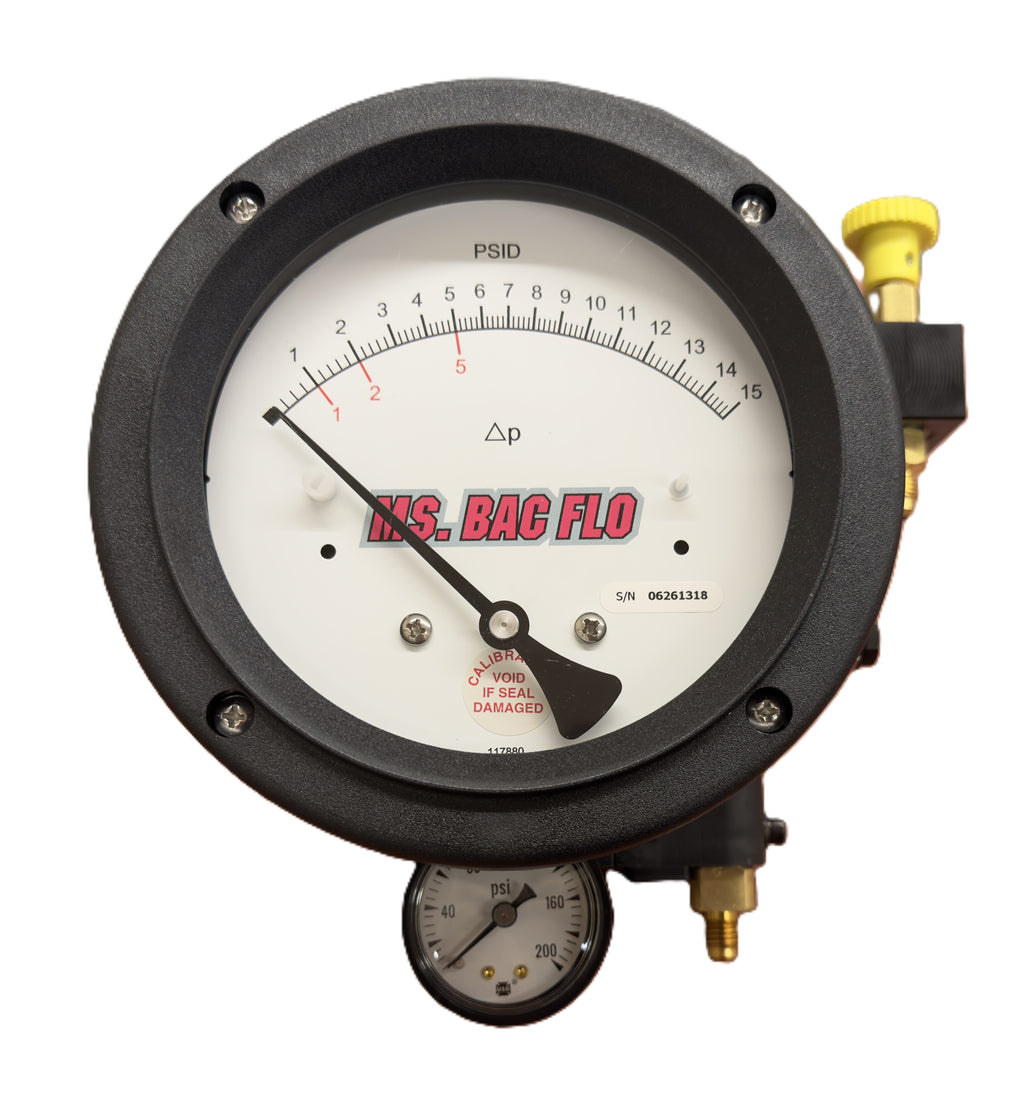

- Gauge Type: Diaphragm Differential Pressure
- Dial Size: 4.5 inches
- Accuracy: ±0.2 PSID (Descending)
- Maximum Working Pressure: 200 PSI
- Body Material: Glass-Reinforced Engineering Thermoplastic
- Wetted Components: EP Elastomers, Brass, and 316 Stainless Steel
- Line Pressure Gauge: 1.5-inch, 0–200 PSI

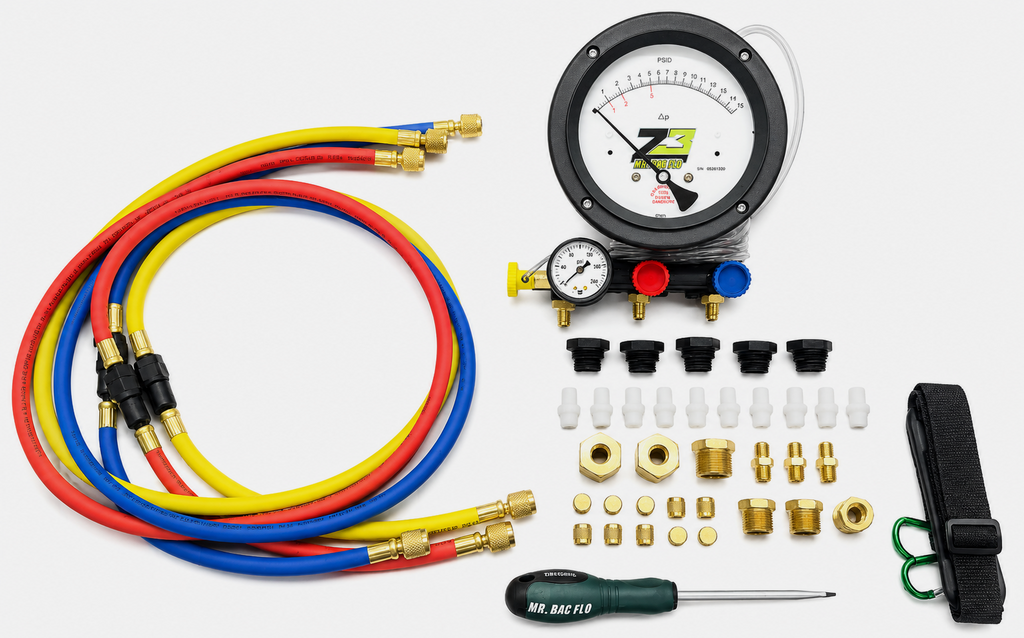

- Hoses: Three (3) color-coded 5-foot hoses with inline filters and 1/4-inch brass Schrader couplers
- Adapter Fittings: Three sets of brass fittings for standard test cocks
- Gauge Weight: 3.3 lbs (1.5 kg)
- Case Dimensions: 18.5" L × 9" W × 9.75" H
- Maximum Operating Temperature: 150°F (65°C)
Designed for accuracy, durability, and ease of use, the Ms. Bac Flo 3 Valve Backflow Test Kit provides the tools professionals need for reliable backflow prevention assembly testing in the field.
